61301611121
Manufacturer:
Wurth Electronics
Mfr.Part #:
61301611121
Datasheet:
Description:

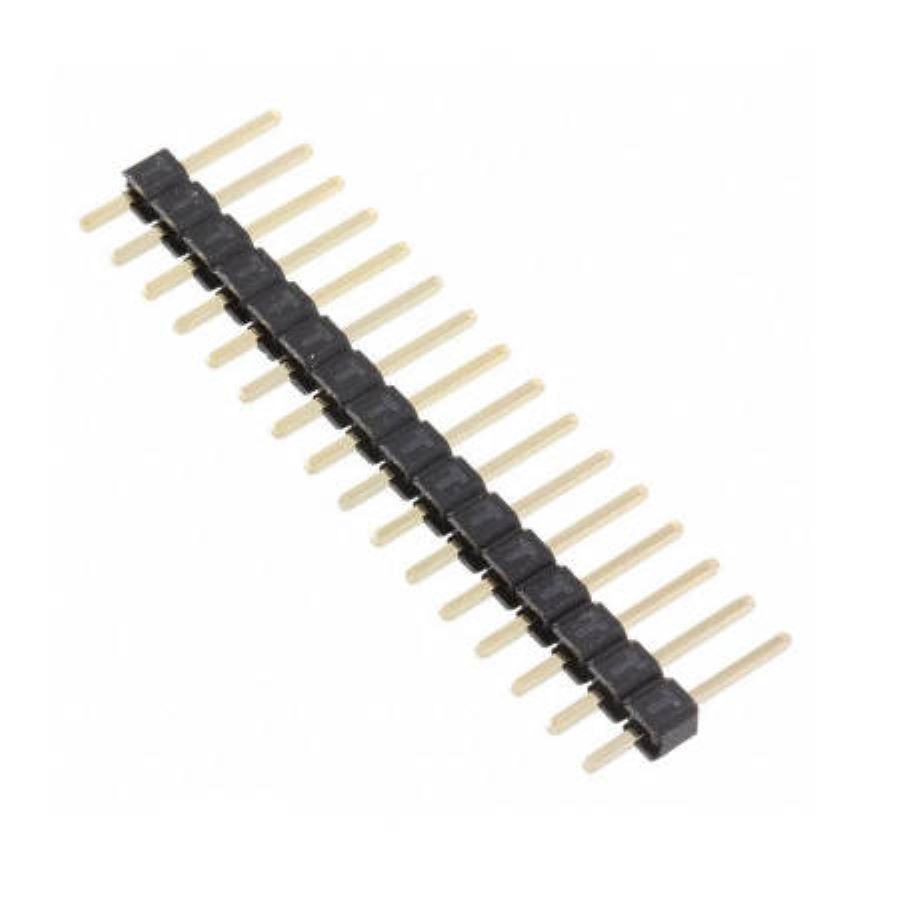

Headers and Wire Housings Through Hole Male Pin Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 8.89 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| Connector Type | Male Pin |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Contact Resistance | 20 mΩ |
| Contact Mating Length | 5.9944 mm |
| Mating Post Length | 6 mm |
| Termination Post Length | 3 mm |
Stock: 7160
Distributors
pcbx
pcbxUnit Price$0.54398
Ext.Price$0.54398
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54398 | $0.54398 |
| 10 | $0.45992 | $4.59920 |
| 25 | $0.38343 | $9.58575 |
| 50 | $0.31985 | $15.99250 |
| 100 | $0.29057 | $29.05700 |
| 300 | $0.27797 | $83.39100 |
| 500 | $0.26592 | $132.96000 |
